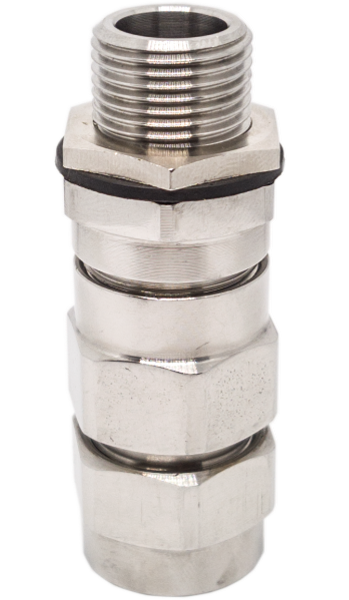

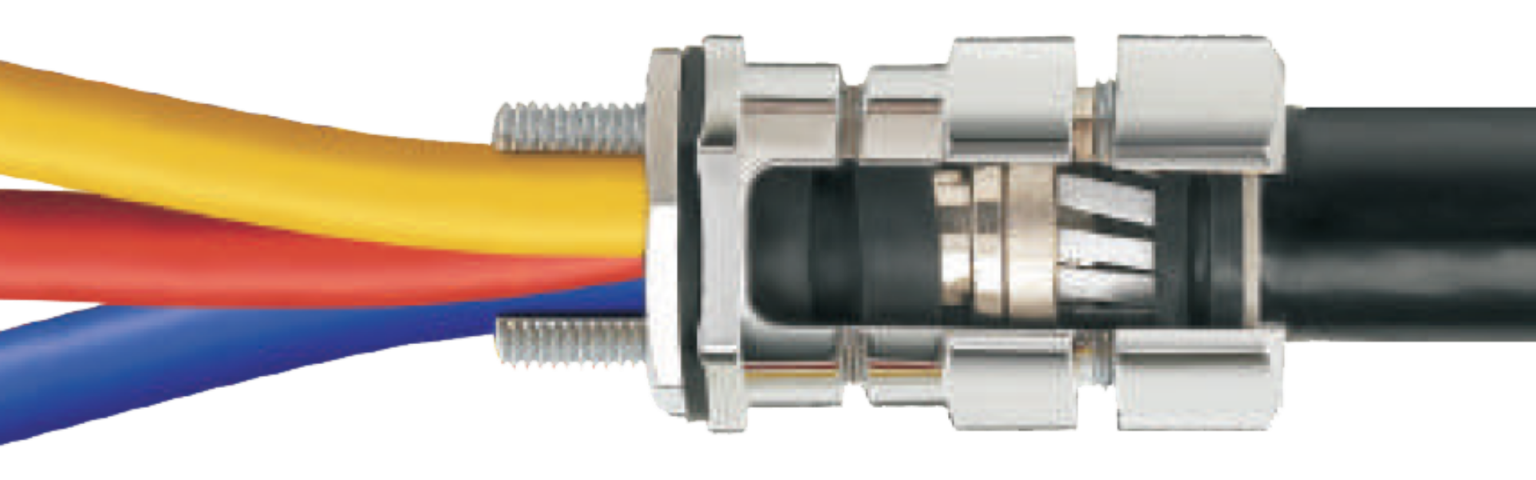

DOUBLE COMPRESSION FLAME PROOF TYPE
(Ex.“D”) CABLE GLANDS
HEAVY DUTY SERIES (For Gas Group IIC)
Technical Data
- Raw Material : Brass (Alu./S.S./M.S. also available)
- Entry Threads: B.S.C. / ET (NPT/PG/BSP/MM also available)
- Finish : Bright Nickel Plated (Tin/Candium/Chrome also available) Protection Class
: IP 66 & 67
- Ref. Standard: IS/IEC 60079-1:2014, IS/IEC 60079-0:2011 IS/IEC 60529:2001(Refirmed
2014) & BS 6121
- Approvals: CSIR-CIMFR Testing Cell, Dhanbad, BIS , CE & ROHS.
- Application : IIC Flame Proof Glands are generally used in hydrogen / hazardous
area, as well as in normal climatic conditions also, which are weather proof, water proof & dust
proof (IP66). With the protection of PVC Hood it can be used in different areas.
