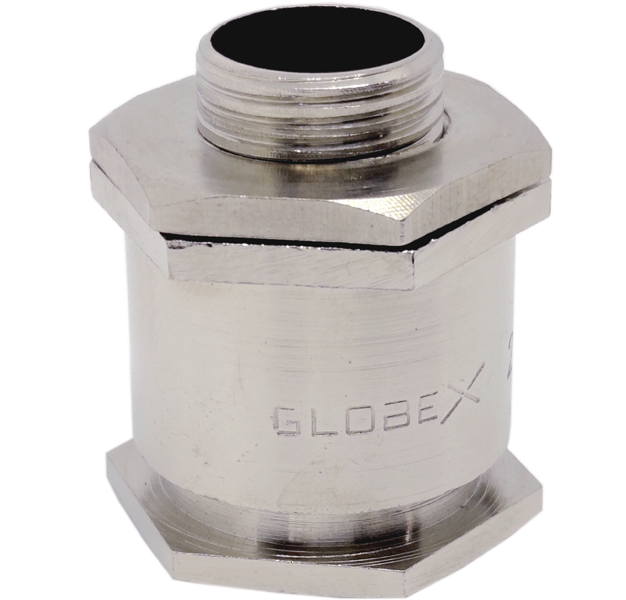

Single compression glands are used in regular climatic conditions, which are weather proof & dust proof (IP60) with the protection of PVC hood it can be used in different areas.
PVC Hood, Earth Tag, Stopping Plug, Reducers, Adaptors etc are available with specified dimensions, in accordance to the gland, separately.

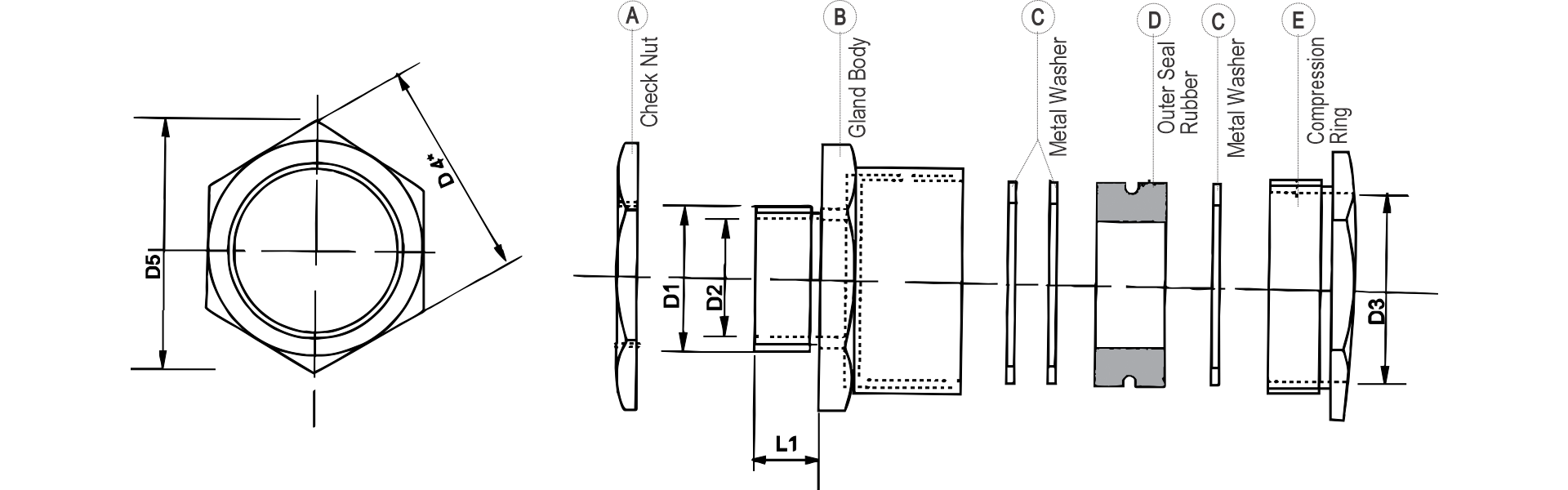

1. Insert part no. E, C & D respectively on the outer sheath of the cable before exposing the armour.
2. After removing over sheath of the cable, insert part no.C, now exposed armour. size the armour length according to the washer & bend the same, again insert part no.C & place on the bended washer, so as to secure armour safety.
3.Insert part no.B on inner sheath, then tight part no.B with part no.E
4.Finally apply the full fitted gland in the enclosure with the entry thread provided, if the enclosure does not have thread then tight the gland with the part no.I provided.
